SE-960L
960L Custom Ultrasonic Cleaning Tank
An open-top SE-960L is the reference for this custom ultrasonic cleaning tank enquiry. No lid is fitted. Find the inside dimensions and electrical figures below; send a part drawing if the reference size does not suit your job.
Discuss a custom tankSee reference data

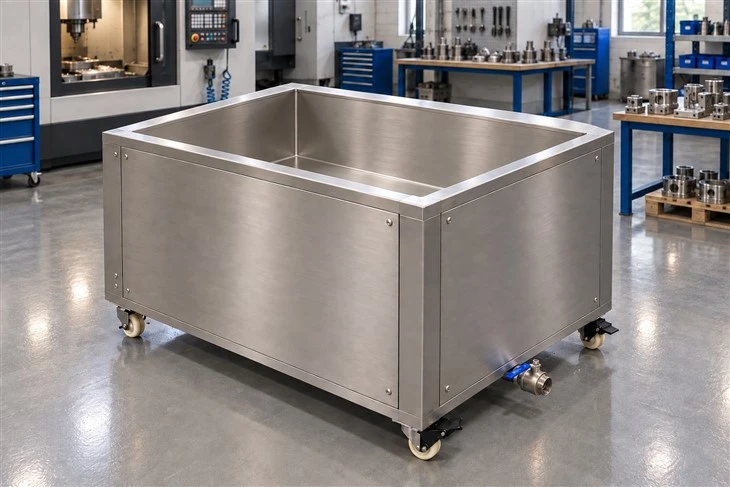

Generated scene, not a photograph of a delivered SE-960L.
Before we discuss a size
A drawing tells us more than a capacity label
The drawing needs the fittings and any fixture included. Mark the loading direction. For the installation layout, ask for the cabinet dimensions separately from the tank interior.
What needs removing?
Part material and residue: please identify both. Note coatings you need to preserve. Include the inspection requirement with any trial request. A tank-size proposal by itself is not a cleaning-test result.
One part or a batch?
Give us both the individual weight and the weight of a complete batch. Add the number of parts required per shift. No load-weight limit or cleaning time has been established by the dimensions quoted here.
SE-960L reference data
| Item | Reference | Meaning for your enquiry |
|---|---|---|
| Model | SE-960L | Base model for a configuration review |
| Geometric volume | 960 L | Not an operating fill specification |
| Tank interior | 1200 × 1000 × 800 mm | Not external enclosure dimensions |
| Ultrasonic power | 0–7200 W | Listed model-sheet range |
| Frequency | 28 kHz or 40 kHz | Select a build; switching is not confirmed |
| Heating power | 27000 W | Heat-up time is not specified |
| Ultrasonic input | 100–110 V or 220–240 V | Configured for the destination |
| Heating supply | Three-phase | Confirm site voltage and frequency |
| Lid | None | Open-top configuration |
Please don't use 960 L as an instruction to fill the tank. It is the volume calculated from the inside measurements. The working level and the space occupied by the load are separate matters. Ask for the operating fill for your arrangement.
A custom ultrasonic cleaning system enquiry
The dimensions can be changed for the job. There is also a choice of 28 kHz or 40 kHz build. Transducer quantity, their layout, heating power and the power supply belong in the proposal. What do you need to clean? That is the enquiry we need before developing the design.
The transducer count is an enquiry item, not a number calculated from the listed wattage. Likewise, the frequency choices don't confirm switching on the same unit. Ask for the chosen build to be stated in the quotation.
A basket, automatic loading and PLC interfaces are not confirmed standard items here. If you need handling equipment or integration, put that in the enquiry for a separate review. This reference is not being offered as an automatic production line.
Generated planning scene. Workpieces on the bench have not been shown undergoing a cleaning test.
Two supply questions, not one
The heating supply must be three-phase. Give us the site voltage and frequency when requesting a quotation for the 27000 W reference heater.
For the ultrasonic input, please choose 100–110 V or 220–240 V to match the destination. State the country in the enquiry. A build is configured for the agreed input; it is not rated for universal input.
Buyer questions
Is 960 L the solution quantity?
No. Ask for the working fill with your load included.
Can the dimensions be changed?
Yes. Send the complete part dimensions, loading direction and site layout so we can discuss a proposed size.
Are these photographs of the final machine?
No. They are generated exterior illustrations. Exact cabinet dimensions, controls, generator count and accessories must come from the agreed specification.
Request a configuration review
Send the drawing, material, residue and inspection requirement. Add part and batch weights, output per shift, site space and electrical information. We can then discuss the SE-960L reference or a different tank size.
Request an engineering review
