77 L AUTOMOTIVE PLATFORM
Automotive Engine Ultrasonic Cleaner for Rebuild Shops
The SE-80L is an automotive engine ultrasonic cleaner with a 77 L tank for suitably sized cylinder heads, transmission valve bodies and other serviceable engine components. It gives rebuild shops a defined tank size, 28/40 kHz frequency configuration and heated cleaning capability to evaluate against their actual parts and soils.
Select by the largest workpiece, usable basket clearance, part weight, contamination and required throughput-not the model name alone. Share those details with SonerC before specifying a cleaning process.

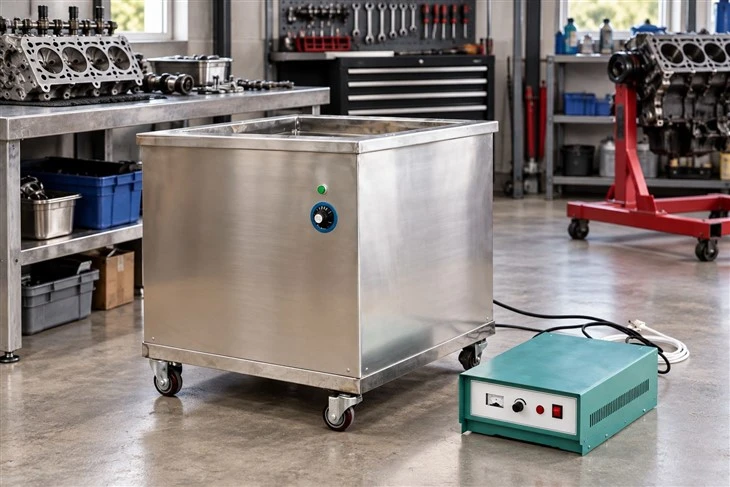

Illustrative workshop scene based on the supplied product photographs. Confirm final configuration against the product gallery.
VERIFIED MODEL DATA
What are the SE-80L tank and power specifications?
The model sheet identifies a 77 L ultrasonic cleaner with the dimensions and electrical figures below. The equipment layout, basket and process options should be confirmed for the workpieces in your enquiry.
| Parameter | SE-80L model sheet | Selection note |
|---|---|---|
| Stated tank volume | 77 L | Model designation is SE-80L; stated volume is 77 L. |
| Tank dimensions | 550 × 400 × 350 mm | Confirm the usable basket space and loading clearance. |
| Ultrasonic power | 0–1200 W | Match the process setting to material and soil. |
| Heating power | 3000 W | Select chemistry and temperature for the part material. |
| Frequency | 28/40 kHz | Confirm the required configuration before ordering. |
APPLICATION FIT
Which engine components are candidates for ultrasonic cleaning?
The tank can be evaluated as a cylinder head cleaning tank or heated engine parts washer when the part fits safely and its material, contamination and required finish suit the proposed solution. The nominal volume alone does not establish fit.

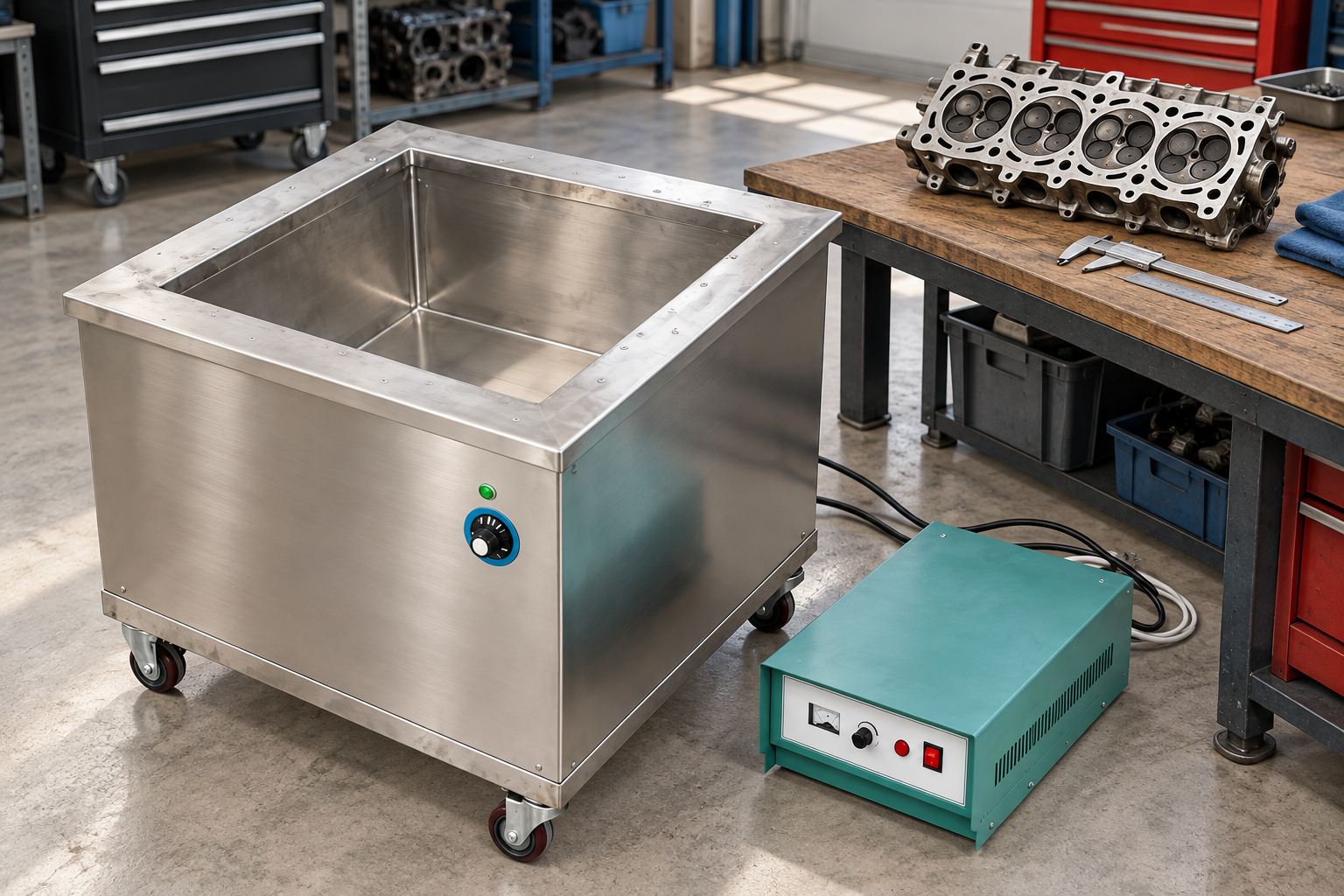

Check the complete workpiece, fixture and basket clearance against the tank dimensions. This staged image illustrates the selection step; it is not a documented cleaning trial or fit guarantee.
Check the head's full length and height, the fixture and basket clearance, and any sensitive inserts or surfaces before selecting a cycle.
Transmission valve body cleaning requires attention to channels, retained components and the cleaning chemistry approved for the assembly.
Gears, housings and service parts with oil or machining residue can be assessed as batches, subject to material compatibility and load limits.
For larger castings or higher load volumes, compare the industrial ultrasonic cleaner range instead of assuming this tank will accommodate every engine assembly.
PROCESS SELECTION
What should you confirm before specifying a cleaning cycle?
Part and finish
Record the alloy, coatings, inserts, largest dimensions and batch weight.
Soil and chemistry
Identify grease, carbon, coolant or machining residue, then test a compatible detergent and rinse plan.
Cycle and handling
Agree on frequency configuration, heating, positioning, loading and the cleanliness check needed after treatment.
An ultrasonic cleaner for engine components is one step in a wider rebuild process; pre-cleaning, rinsing, drying and inspection may still be required. Run a representative part trial before making claims about a specific cleaning time or finish.
MANUFACTURING EVIDENCE
From ultrasonic components to industrial tank assembly
SonerC's documented production chain includes ceramic and electronic components, transducer work, stainless-steel tank assembly and system testing. The images below show company-level industrial manufacturing evidence; they are not presented as a photographic record of this specific SE-80L unit.
Industrial tank and transducer assembly.
Transducer positioning and electrical connections.
Powered water test on a large industrial tank.
BUYER QUESTIONS
SE-80L selection FAQs
Will my cylinder head fit?
Compare its overall dimensions and fixture with the 550 × 400 × 350 mm tank dimensions. Confirm basket clearance, loading method and liquid coverage with the engineering team.
Should I use 28 or 40 kHz?
The listed 28/40 kHz options should be selected against material, geometry, soil and finish. Request a part trial if the correct configuration is uncertain.
What is needed for a quotation?
Send a drawing or part dimensions, material, maximum batch weight, contamination, desired throughput, local power supply and any rinse or drying requirement.
GLOBAL ENGINEERING ENQUIRIES
Match the SE-80L to your actual workpieces
Discuss an automotive engine ultrasonic cleaner with SonerC using the part details, soil and production target above. The team can confirm fit and configuration before a quotation is prepared.
Request an engineering review
