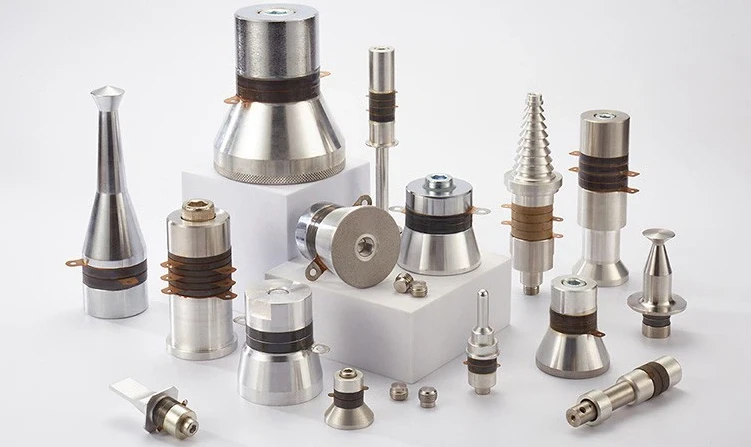

Product Introduction
Ultrasonic transducer probes are widely used across multiple industries. In medical imaging, they create detailed images of internal body structures for diagnosis. In non-destructive testing, they detect flaws or defects in materials without causing damage. In industrial cleaning, they effectively remove dirt and grime from surfaces.
Product Parameters
|
Classification |
Model |
Frequency (KHz) |
Resonant Impedance (Ω) |
Static Capacitance (PF) |
Insulation Resistance (MΩ) |
Power (W) |
|
Ultrasonic Cleaning Series |
Q120W-20K |
20±1 |
≤20 |
4800±10% |
≥100 |
120W |
|
Q100W-28K/40K |
28±/40±1 |
≤20 |
8000±10% |
≥100 |
100W |
|
|
Q80W-28K/40K |
28±/40±1 |
≤20 |
7000±10% |
≥100 |
80W |
|
|
Q60W-28K/40K |
28±/40±1 |
≤20 |
5000±10% |
≥100 |
60W |
|
|
Q60W-68K |
68±1 |
≤20 |
3800±10% |
≥100 |
60W |
|
|
Q60W-120K |
120±1 |
≤20 |
3800±10% |
≥100 |
60W |
|
|
Q50W-40K |
40±1 |
≤20 |
4000±10% |
≥100 |
50W |
|
|
Q40W-40K |
40±1 |
≤30 |
3000±10% |
≥100 |
40W |
|
|
Q30W-40K |
40±1 |
≤30 |
1800±10% |
≥100 |
30W |
|
|
Q15W-50K |
50±1 |
≤100 |
1100±10% |
≥100 |
15W |
|
|
Ultrasonic Medical and Beauty Series |
M50W-80D |
40±1 |
≤20 |
4000±10% |
≥100 |
50W |
|
M50W-60D M15W-63D |
35±1 1000±50 |
≤20 ≤20 |
4000±10% 3500±10% |
≥100 |
50W 15W |
|
|
M30W-40K |
40±1 |
≤20 |
2200±10% |
30W |
||
|
M15W-40D |
3000±100 |
≤20 |
5000±10% |
15W |
||
|
Ultrasonic Welding Series / Emulsifying Series |
H3000W-15K |
14.9±0.1 |
≤20 |
13500±10% |
≥5000 |
3000W |
|
H2000W-20K |
19.9±0.1 |
≤20 |
10000±10% |
≥5000 |
2000W |
|
|
H800W-28K |
27.8±0.2 |
≤20 |
1600±10% |
≥5000 |
800W |
|
|
H500W-35K |
34.8±0.2 |
≤20 |
3000±10% |
≥5000 |
500W |
|
|
R80W-20K |
20±1 |
≤20 |
4200±10% |
≥5000 |
80W |
FAQ
Q: What is the working principle for the ultrasonic transducer probe?
A: The working principle of the ultrasonic transducer probe is based on the piezoelectric effect, allowing it to convert electrical energy into mechanical energy and vice versa. This feature enables it to generate and detect ultrasonic waves that have an extensive range of applications.
Q: What purpose is the ultrasonic transducer probe?
A: The ultrasonic transducer probe is a highly useful device utilized in numerous industries for a variety of applications. The main purpose of this device is to produce ultrasonic waves which are used for scanning and imaging objects. The medical industry, for instance, relies heavily on the use of ultrasonic transducer probes for diagnostic purposes and to guide surgical procedures. Additionally, engineers and scientists employ ultrasonic transducer probes to conduct non-destructive testing for materials and structures.
