Products Description
Single Crystal Ultrasonic Straight Probe/Transducer consists of a socket, a shell, a protective film, a piezoelectric chip, a sound-absorbing material, etc. The straight probe longitudinal wave detection is generally used to detect raw materials such as steel plates and forgings or materials after normalizing.
The functions of the components of the straight probe are as follows:
(1) The transmission/reception of ultrasonic waves are completed by piezoelectric chips;
(2) The protective film is made of high-hardness corundum sheets, which are wear-resistant;
(3) Aluminum alloy shell, surface sandblasting treatment;
(4) The sound-absorbing material is used to absorb the noise on the back of the chip;
(5) The socket is an electrical signal interface, which is connected to the instrument through the probe line.

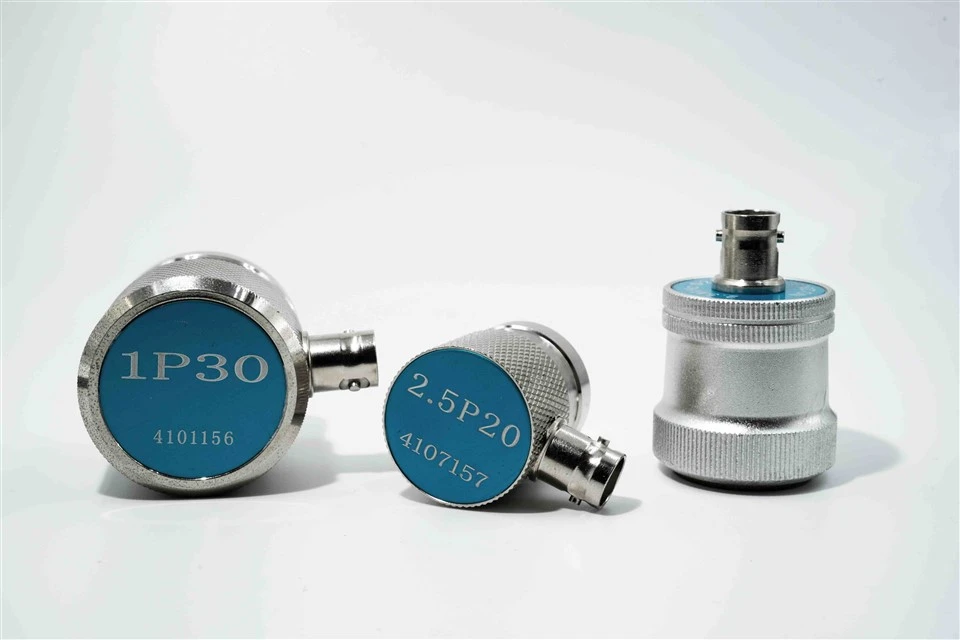

Products Image
Products Specification
Conventional Ultrasonic Straight Probe
|
Ultrasonic Frequency ( MHz) |
The diameter of Piezoelectric transducer (mm) |
Socket |
|
0.5 |
20 |
Q9 |
|
28 |
||
|
1.25 |
14 |
Q9 |
|
20 |
||
|
28 |
||
|
2.5 |
14 |
Q9 |
|
20 |
||
|
28 |
||
|
5 |
14 |
Q9 |
|
14 |
||
|
20 |
Micro Ultrasonic Straight Probe
|
Ultrasonic Frequency ( MHz) |
The diameter of Piezoelectric transducer (mm) |
Socket |
|
2.5 |
6 |
Q6 |
|
8 |
||
|
10 |
||
|
12 |
||
|
5 |
6 |
Q6 |
|
8 |
||
|
10 |
||
|
12 |
||
|
10 |
6 |
|
The Product's application
Near surface flaw detection
Thin part inspection
Thick part or hard-to-penetrate material inspection
Composites and plastics
Turbine blades
Common metal parts with simple geometries
Manual inspection of plates, forgings, bars, billets and castings
Tube, pipe, tank inspection
Bond inspection
Machine components
Casings
FAQ
Q: What is the single crystal Ultrasonic Straight Probe/Transducer?
A: A: An ultrasonic straight probe refers to a probe that has only one piezoelectric chip inside. The emission and absorption of signals are both completed by the piezoelectric chip, and the piezoelectric chip relies on the emission of longitudinal waves to detect objects.
Q: what is usage of Ultrasonic Probe/transducer?
A: Longitudinal wave probes are usually called straight probes, which are mainly used to detect defects parallel to the test surface, such as plate, casting, forging inspection, etc.
Q: What is the material of the ultrasonic Probe/Transducer?
A: The Ultrasonic Probe/Transducer is made of the Piezoelectric Ceramic.
