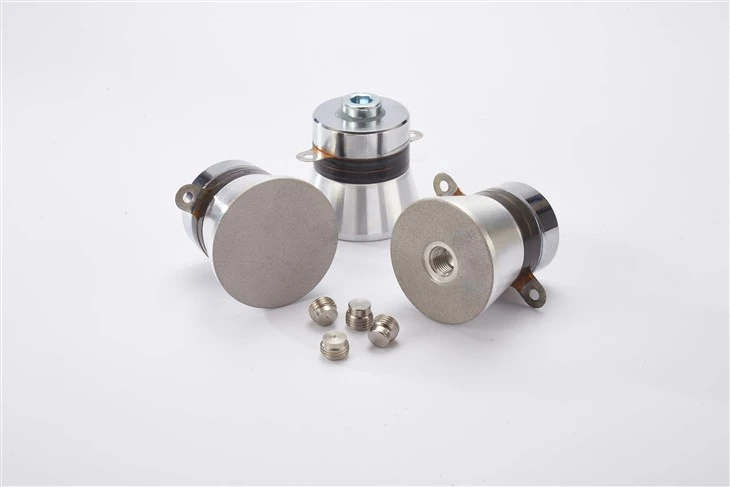

40Khz 100W Ultrasonic Cleaning Transducer

40 khz 100W ultrasonic cleaning transducer can generate 100W ultrasonic power stably that is because it assemble with 2pcs 50W piezo ceramic which is produced by my own production line. We do have the formulation of the piezo ceramic and with 20years development we do adjust the ratio to ensure the quality of the piezo ceramic sheet. Or there will be quality problem such as the ultrasonic power can't reach to 100W, and the broken of the piezo ceramic. Of course, the formulation is the key factor to ensure

the quality, further more, we do have strict quality control on the production lien while sintering, especially the temperature of the production line, which will contribute the quality of the ceramic.

Model: Ultrasonic transducer 40khz

Frequency(KHz): 40±1

Resonant Impedance (Ω): ≤20

Static Capacitance (PF): 8000±10%

Insulation Resistance (MΩ): ≥100

Power (W): 100

100W Ultrasonic transducer can generate the moderate cavitation effect which the formation of tiny bubbles in the medium size bursting instantaneously high-pressure shock wave without damaging the work-piece, but making it suitable for most cleaning scenarios.

Our company's core competitiveness lies in self-developed technology. We have built a comprehensive technical system encompassing material formulation and system integration, breaking away from the limitations of traditional OEM manufacturing's reliance on external supply chains. This provides fundamental technical support for OEM/ODM collaborations: Regarding core materials, we possess an **independent piezoelectric ceramic formulation system**. it enable us to precisely adjust ceramic components according to your needs, such as Frequency, power, temperature resistance, and corrosion resistance, optimizing key indicators, such as piezoelectric constant(d33), coupling coefficient(kp), and the mechanical quality factor(Qm). we have particularly rich experience in the R&D of piezoelectric ceramics. We have such ability to ensure the performance stability and consistency of transducers from the source.

For prototyping and testing, we have complete basic production and testing equipment, enabling a closed-loop service of **rapid prototyping, accurate testing, and iterative optimization**: After receiving customer requirements, we can complete customized sample development and production in as little as 3-5 working days; the testing process covers all dimensions of indicators such as resonant frequency, electronically conversion efficiency, impedance matching, power output, temperature and corrosion resistance, and provides detailed test reports to ensure that the samples fully meet the customer's technical requirements before starting mass production.
