Shenzhen Soner Technology Co., Ltd. is one of the leading manufacturers and suppliers of 1mhz ultrasonic facial transducer in China. With abundant experience, we warmly welcome you to wholesale high quality products for sale here from our factory. We also accept customized orders.

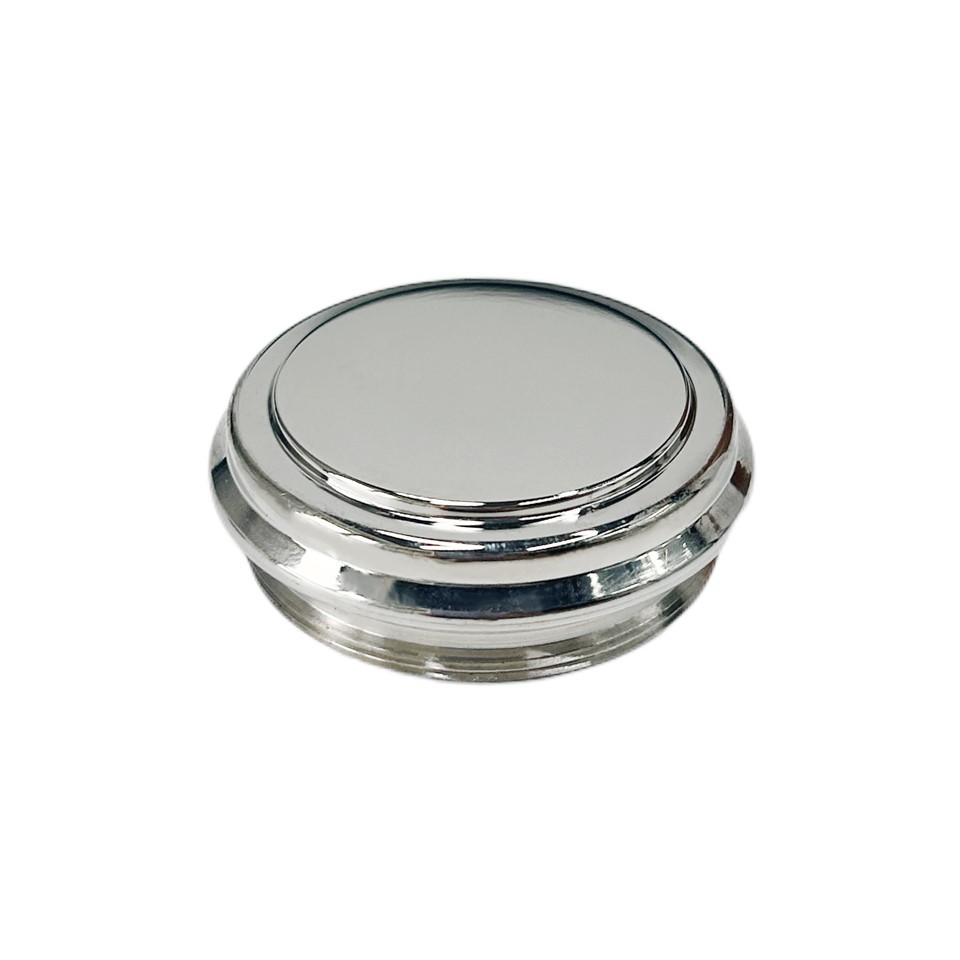

This 1 MHz ultrasonic facial transducer comes in two listed housings. The ceramic inside each is 30 mm, but the metal parts differ: 49 × 7 mm or 39 × 8 mm. A repair buyer should compare the complete old head, not just its frequency label. An OEM buyer can start with the space available inside the new handle.
Two 30 mm configurations
| Listed parameter | 49 × 7 mm housing | 39 × 8 mm housing |
|---|---|---|
| Nominal frequency | 1 MHz | 1 MHz |
| Ceramic diameter | 30 mm | 30 mm |
| Mechanical quality factor (QM) | 208 | 200 |
| Listed bandwidth | 12 kHz | 15 kHz |
| Capacitance | 9 nF | 8.6 nF |
| Housing material | 304 stainless steel | 304 stainless steel |

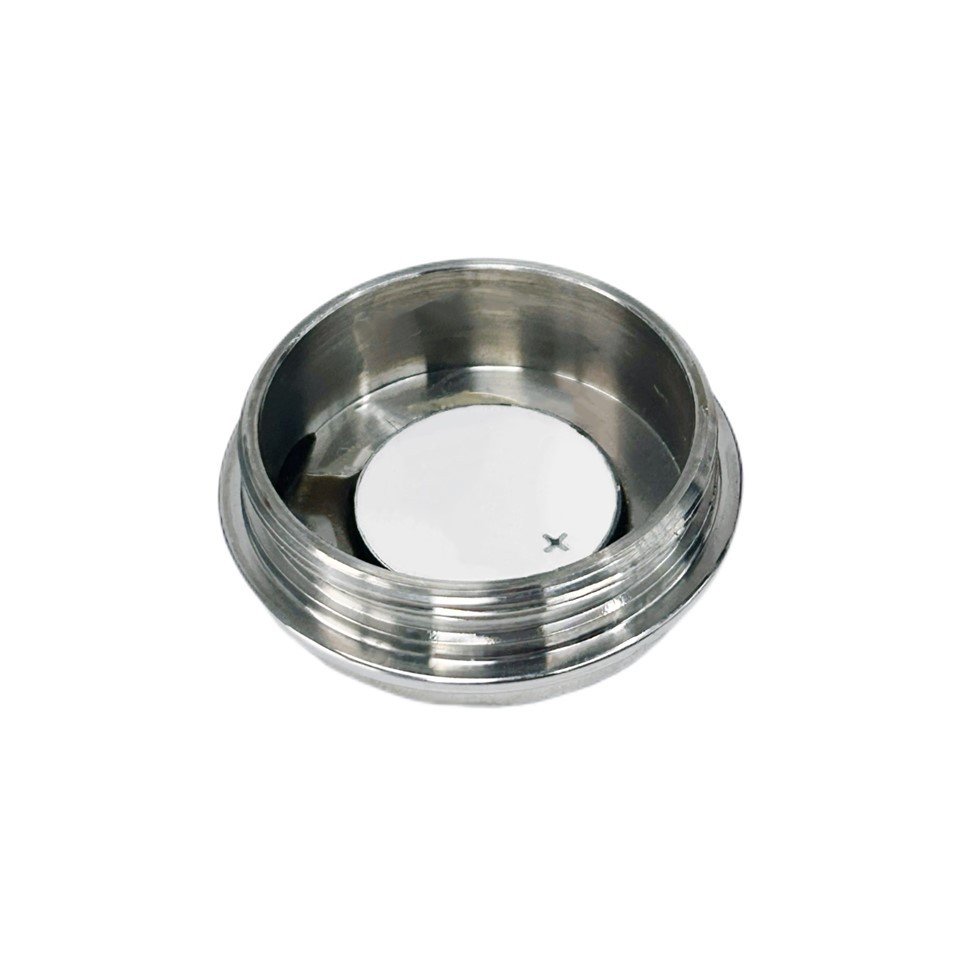

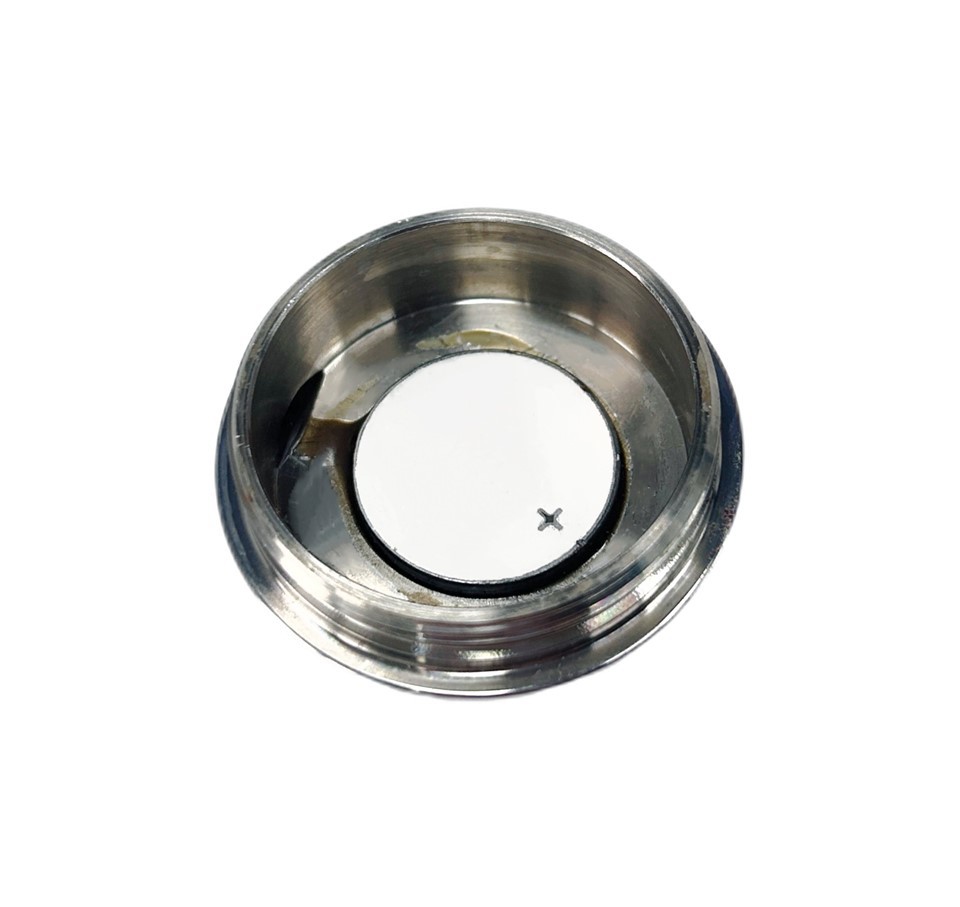

One detail often gets missed in a drawing review: 30 mm is the ceramic diameter. It is not specified here as the metal contact-face diameter. The figures in the table are the listed component data. Resonance and impedance for the chosen sample, with the test conditions, belong in the buyer's own approval record.
Check the head before choosing a version
For a replacement, send a side view of the old head and a photo of its connector. We need to see where the lead leaves the shell and how the seal is held. A part may pass through the front opening yet foul the cable at the back. The eye contour transducer is a separate, smaller-format listing; the body transducer has a larger listed ceramic. Neither is a size substitute inferred from this page.
OEM and ODM engineering review
A new handle may need a different fixing edge or cable exit even when the ceramic size stays at 30 mm. SonerC can review that metalwork with the ceramic and lead arrangement. The drawing should identify the driver and connector too. If the design moves beyond either catalog housing, sample approval and a project quotation establish the dimensions, electrical checks, quantity and delivery.
Production reference
The SonerC production page shows ceramic processing and component assembly. Those factory images show the process, not test results for the 49 × 7 mm or 39 × 8 mm part. For the selected version, the approved sample and its measurement record are the reference for a production order.
Questions from equipment makers
Are the electrical listings identical?
No. The 49 × 7 mm row lists QM 208, 9 nF and 12 kHz bandwidth; the 39 × 8 mm row lists QM 200, 8.6 nF and 15 kHz. Check the selected sample with your driver.
Does 1 MHz confirm performance on skin?
No. A component frequency does not establish treatment depth, collagen effects or other finished-device outcomes. The device maker must evaluate the complete head, driver, coupling, controls and intended use.
Can either version replace my existing transducer?
Only after a mechanical and electrical comparison. Send the old part number or sample, housing dimensions, connector information and available measurements.
What should I send for an OEM review?
A cavity drawing, the old head if this is a replacement, a connector photograph and the driver's operating details. Include the sample checks you require and an estimated quantity.

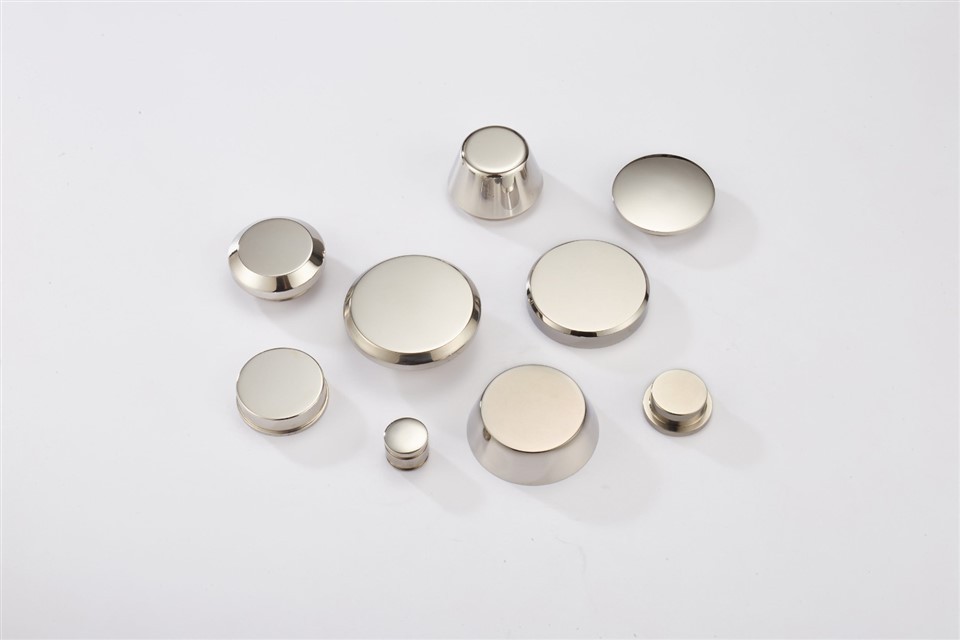

Other component sizes are listed in the ultrasonic beauty transducer range. For this 30 mm part, send SonerC the handpiece details.
