Product Introduction
We are a professional manufacturer and supplier of Ultrasonic Transducers for Sensors. This product is a core component designed for ultrasonic applications and is suitable for ultrasonic cleaning, ultrasonic medical and beauty, ultrasonic welding, liquid emulsification, and other equipment.
Feature
Accurate output
Ultrasonic Transducer for Sensor uses high-performance piezoelectric ceramics combined with a precision tuning structure to ensure that the ultrasonic signal waveform is stable and has strong directivity, and the ranging accuracy can be controlled within ±1mm.
Efficient energy conversion
Through high-density ceramic sheets and fine pressing process optimization, the product achieves an electrical-to-acoustic conversion efficiency of more than 90%, outputs stronger sound wave energy at the same input power, improves system response speed and detection sensitivity, and reduces operating energy consumption.
Rich frequency models
In order to adapt to diverse needs, Ultrasonic Transducer provides multiple frequency band models from 20kHz to 120kHz, which are suitable for a variety of application scenarios from coarse particle cleaning, precision detection, medical probes, to ultrasonic welding, and customers can flexibly select models as needed.
Non-contact type
The transducer realizes non-contact energy transfer through ultrasonic propagation, avoiding physical wear and structural interference, and is suitable for sensitive environments with high temperature, high pressure, or where direct contact is not suitable.

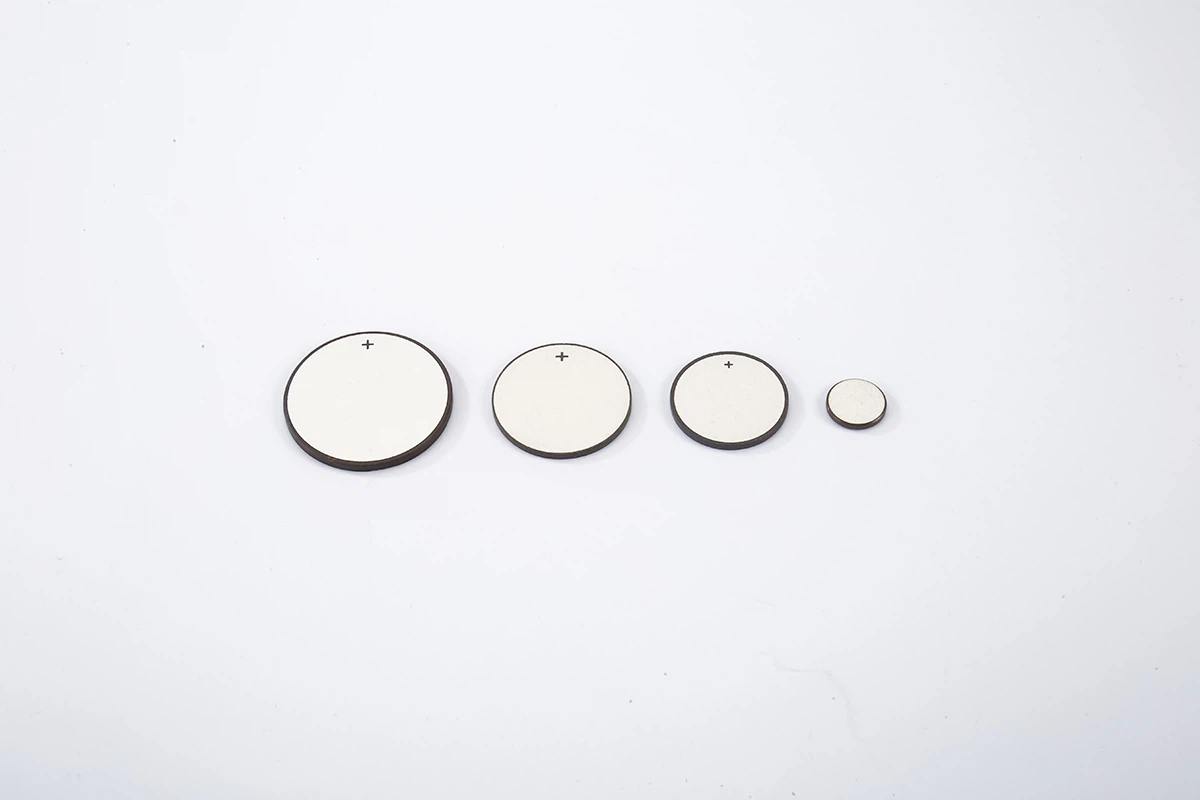

Product details
Product Specifications
|
Classification |
Model |
Frequency (KHz) |
Resonant Impedance (Ω) |
Static Capacitance (PF) |
Insulation Resistance (MΩ) |
Power (W) |
|
Ultrasonic Cleaning Series |
Q120W-20K |
20±1 |
≤20 |
4800±10% |
≥100 |
120W |
|
Q100W-28K/40K |
28±/40±1 |
≤20 |
8000±10% |
≥100 |
100W |
|
|
Q80W-28K/40K |
28±/40±1 |
≤20 |
7000±10% |
≥100 |
80W |
|
|
Q60W-28K/40K |
28±/40±1 |
≤20 |
5000±10% |
≥100 |
60W |
|
|
Q60W-68K |
68±1 |
≤20 |
3800±10% |
≥100 |
60W |
|
|
Q60W-120K |
120±1 |
≤20 |
3800±10% |
≥100 |
60W |
|
|
Q50W-40K |
40±1 |
≤20 |
4000±10% |
≥100 |
50W |
|
|
Q40W-40K |
40±1 |
≤30 |
3000±10% |
≥100 |
40W |
|
|
Q30W-40K |
40±1 |
≤30 |
1800±10% |
≥100 |
30W |
|
|
Q15W-50K |
50±1 |
≤100 |
1100±10% |
≥100 |
15W |
|
|
Ultrasonic Medical and Beauty Series |
M50W-80D |
40±1 |
≤20 |
4000±10% |
≥100 |
50W |
|
M50W-60D M15W-63D |
35±1 1000±50 |
≤20 ≤20 |
4000±10% 3500±10% |
≥100 |
50W 15W |
|
|
M30W-40K |
40±1 |
≤20 |
2200±10% |
30W |
||
|
M15W-40D |
3000±100 |
≤20 |
5000±10% |
15W |
||
|
Ultrasonic Welding Series / Emulsifying Series |
H3000W-15K |
14.9±0.1 |
≤20 |
13500±10% |
≥5000 |
3000W |
|
H2000W-20K |
19.9±0.1 |
≤20 |
10000±10% |
≥5000 |
2000W |
|
|
H800W-28K |
27.8±0.2 |
≤20 |
1600±10% |
≥5000 |
800W |
|
|
H500W-35K |
34.8±0.2 |
≤20 |
3000±10% |
≥5000 |
500W |
|
|
R80W-20K |
20±1 |
≤20 |
4200±10% |
≥5000 |
80W |
Product Applications
Ultrasonic cleaning equipment
Used in household and industrial cleaning machines, it generates high-frequency cavitation bubbles, effectively removes stains on the surface of precision devices, and is suitable for non-contact cleaning of glasses, jewelry, electronic components, etc.
Medical ultrasonic probe
As the core component of ultrasonic diagnostic equipment, it is used for in vivo/in vitro scanning to achieve high-resolution imaging, and is widely used in obstetrics and gynecology, heart, vascular examination, and other fields.
Ultrasonic welding equipment
Applied to hot-melt welding of plastic parts, non-woven fabrics, copper and aluminum materials, etc., and realizes material connection through high-frequency vibration, which is suitable for automated batch production.
Ultrasonic emulsification/dispersion system
Ultrasonic Transducer for Sensor is used for liquid homogenization in the fields of cosmetics, food, and biotechnology, making multi-phase materials more evenly mixed and smaller in particle size.
Industrial sensor system
Used for distance detection, obstacle avoidance, and ranging, liquid level control, etc., it achieves precise measurement by sending and receiving ultrasonic waves, and is commonly used in automation equipment, AGV cars, and intelligent security systems.
Service
Service
Pre-sales
We engage in in-depth communication with customers to understand their needs and, based on our expertise, provide tailored solutions.
During-sales
We maintain close communication with customers throughout the order process and production stages, keeping track of any changes in customer requirements. We promptly adjust our strategies to meet these changing needs, ensuring timely order delivery.
After-sales
We conduct thorough tracking and analysis of any product quality issues raised by customers and provide appropriate solutions to address their concerns.
Shipping Policy
- We offer worldwide shipping by courier, sea, and air (excluding some countries and APO/FPO addresses).
- Orders are processed promptly after payment confirmation. We ship only to the confirmed order address, which must match your shipping address.
- The shipping invoice and product description will match the order details. If you need assistance to expedite customs clearance, please contact us before shipment.
- Buyers must assist the courier by providing any required customs documentation as soon as notified that the shipment has arrived.
- After receiving and inspecting the parcel, please kindly confirm receipt on the platform if there are no issues.
Our Company
Shenzhen Soner Technology Co., Ltd., a subsidiary of Shantou Chuangxin Technology Co., Ltd., is based in Shenzhen. With over 20 years in ultrasonic technology, we design and manufacture ultrasonic generators and devices for home, industrial, and medical use. Our factory integrates all production stages-from design to testing-ensuring quality and customization. We serve clients worldwide with OEM and ODM services.
Strong Production Capacity
We operate a complete manufacturing chain with more than 100 production units, enabling efficient, stable production and timely delivery.
Professional Team
With over 200 employees, including engineers and quality specialists, we ensure effective product development and strict quality control.
Rich Industry Experience
Over 20 years of experience in ultrasonic technology supports reliable and mature solutions for various applications.
Quality Certifications
Our products hold ISO9001, BSCI, CE, GS, ETL, and CB certifications, meeting international standards and facilitating global market access.
FAQ
FAQ
Q: What payment methods do you accept?
A: We accept Alipay, Western Union, PayPal, and T/T. Western Union is recommended due to no bank charges and faster processing.
Q: Who is responsible for customs duties or taxes?
A: Buyers are responsible for any import taxes, customs duties, or fees charged by their country.
Q: Do you ship worldwide?
A: Yes, we ship worldwide via courier, sea, and air, except to some restricted countries and APO/FPO addresses.
Q: How soon will my order be processed after payment?
A: A: Orders are processed promptly after payment verification to ensure timely shipment.
Q: Can you ship to a different address than the order address?
A: No. We only ship to the confirmed order address, which must match your shipping address.
Q: What is an Ultrasonic Transducer for a Sensor?
A: Ultrasonic Transducer for Sensor is a key component that converts electrical energy into ultrasonic signals. It is widely used in distance measurement, cleaning, welding, medical imaging, and other fields, and supports non-contact measurement or energy transfer.
Q: What frequency bands does this product support?
A: It provides multiple frequency models from 20kHz to 120kHz, which are suitable for different application requirements such as rough cleaning, fine cleaning, inspection, medical treatment, welding, etc. Customers can choose the appropriate frequency band according to the scenario.
Q: What equipment can an Ultrasonic Transducer for Sensor be used for?
A: It is widely used in ultrasonic cleaning machines, medical probes, welding systems, fluid emulsification equipment, and industrial distance measurement, obstacle avoidance, liquid level sensor, and other systems.
Q: What kind of transducer is used in an ultrasonic sensor?
A: One of the most common types of ultrasonic transducers used in ultrasonic sensors is the piezoelectric transducer. It is made of a ceramic disk that vibrates at a specific frequency when an electrical current is applied. The frequency and size of the disk determine the range of the ultrasonic sensor.
Another type of ultrasonic transducer used in sensors is the magnetostrictive transducer. This type of transducer uses a magnetic field to generate ultrasonic waves. It consists of a wire or fiber that is wrapped around a magnetostrictive material. When a current is passed through the wire or fiber, it creates a magnetic field that causes the material to vibrate and generate ultrasonic waves.
Q: What is the advantage of an ultrasonic sensor?
A: One of the most significant advantages of ultrasonic sensors is their ability to detect objects accurately, even in low light or dusty environments. Unlike conventional sensors, they do not rely on visual cues, which can be compromised in these conditions. Instead, ultrasonic sensors use sound waves to detect the presence and distance of an object, which is why they are highly accurate and reliable.
Another advantage of ultrasonic sensors is their versatility. They can be used in a range of applications, from measuring the distance between two objects to detecting the presence of a foreign object in a pipeline. Ultrasonic sensors can also be used in robotics and automation systems, where they can help guide robots and autonomous vehicles.
